This DIY CNC engraving machine is specially designed for DIY fun, study and research, giving you an extreme portable experience. This CNC engraver features the function of engraving, carving & milling. It can engrave plastic, wood, acrylic, PVC, PCB, wood, or the like material. The drill bit can not engrave hard metal, jade, or other hard materials.
Dual Application
The removable CNC head could be easily be replaced with a laser engraving header.
Compact Design
The machine is 420*355*280mm in size and a great desktop DIY tool.
Engraving Size
300*180*40mm to meet demands for projects of different sizes.
Easy-to-use Software
Uses Grbl, high performance, open-source software for controlling movement, and runs on Arduino.

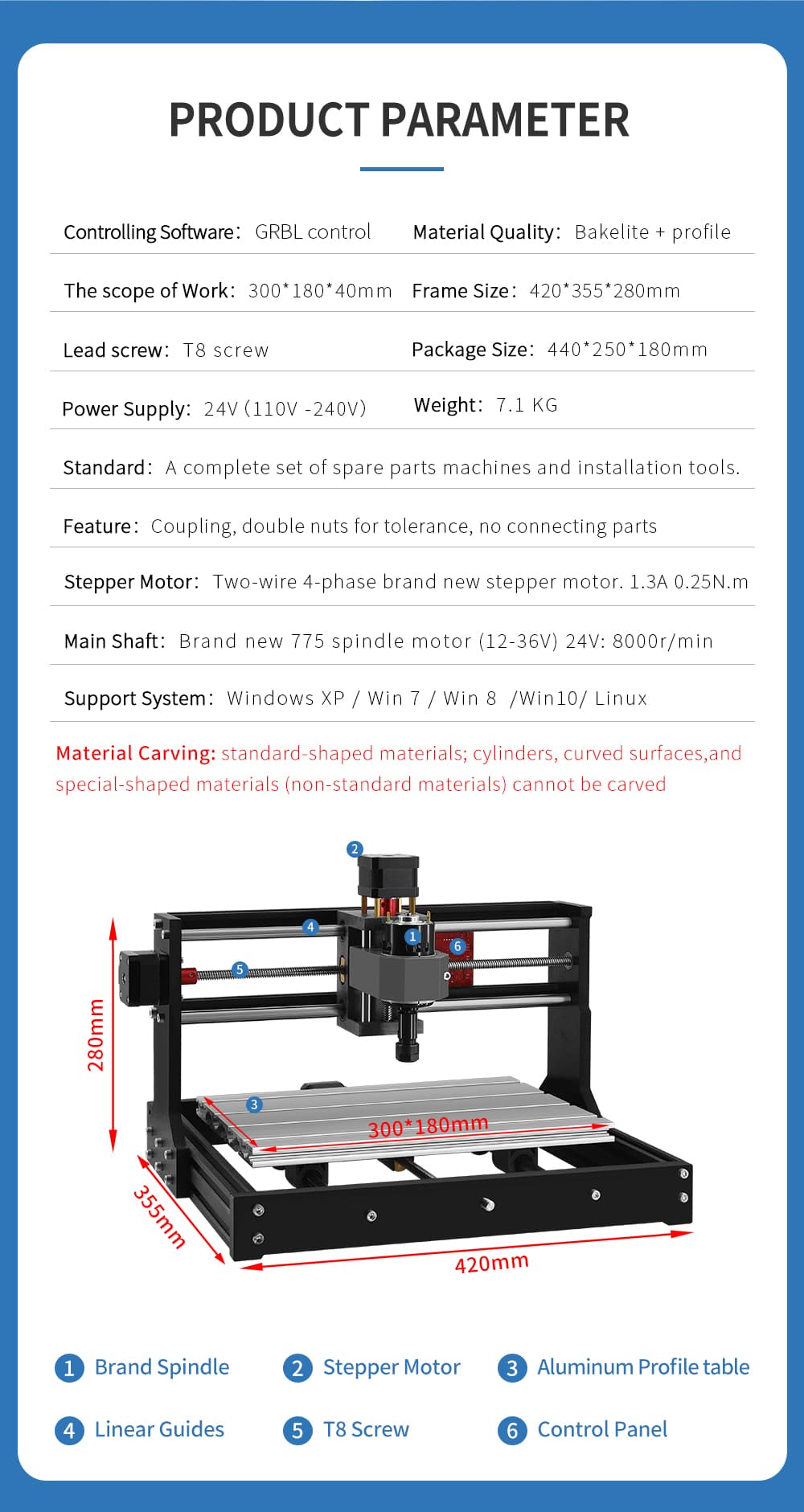

Specification
- Model: CNC 3018 Pro
- Plug: US+EU
- Control software: GRBL
- Material: Aluminum + plastic
- Color: Silver+Black
- Working Area: 300*180x40mm
- Frame Size: 420*355*280mm
- Spindle: 775 spindle motor (12-36V) 24V: 8000r/min
- Spindle Chuck: ER11
- Step Motor: 1.5A / 0.42N.m
- Power Supply: 24V / 5.6A ((110 V-240 V)
- Supported System: Windows XP / Win 7 / Win 8 / Win 10 /Linux
- Engraving materials: plastic, wood, acrylic, PVC, PCB, and other soft materials.
- Communication Port: Micro USB
- Lead Screw: T8
- Packing: Carton
- Package Size: 7.1kg / 250oz
- Package Weight: 44*25*18cm / 17.3*9.8*7in
Dual Application
Removable CNC head could be easily be replaced with laser engraving header (NOT INCLUDED).
Compact Design
The machine is 420*355*280mm in size and a great desktop DIY tool.
Easy-to-use Software
Uses Grbl, high performance, open-source software for controlling movement, and runs on Arduino.
Engraving Size
300*180*40mm to meet demands for projects of different sizes.
Support Materials
Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the machine could be used on a wide range of projects and materials.
New Control Board
Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage.
