5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors
5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors

5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors

$41.43

5pcs/lot 4-lead 17HS8401 motor Nema17 Stepper Motor with wires 42 motor 1.8A CE ROSH CNC Laser for 3D printer motors

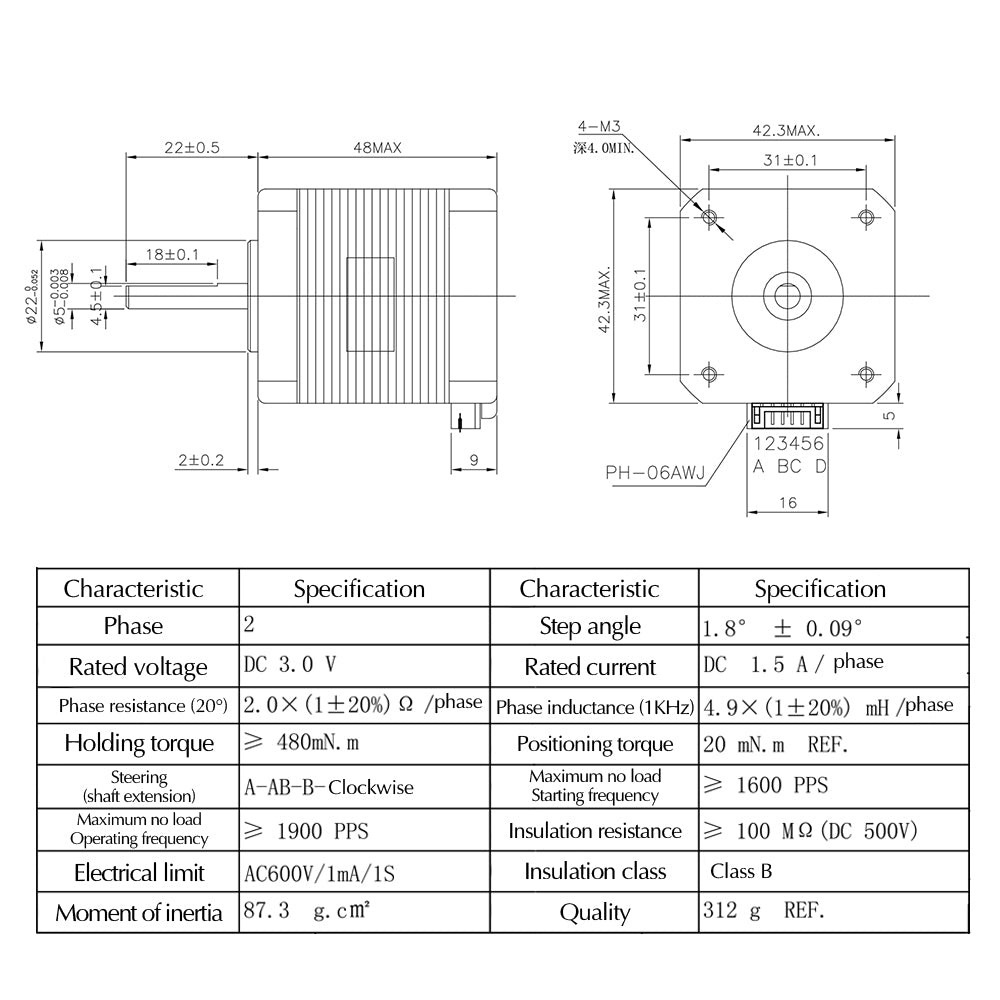

Model : 17HS8401

Step Angle :1.8

Motor Frame Size : 41.5mm * 41.5mm * 47mm  (Length*Width *Height )

Shaft : 22mm(Lenght)  5mm(Diameter)

Outlet way : 4Pin plug line

General Specification:

Step angle accuracy: +/ - 5%(full step,not load)

Resistance accuracy: +/ - 10%

Inductance accuracy: +/ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute

Red: A+

Green: A-
Yellow: B+
Black: B-












 3D printer motor Description:



     T-Trees is a professional supplier of 3D printers motor and related accessories products in China. It has a professional R&D team and high quality after-sales service to ensure that you can purchase at a reliable and reliable price.



     3D printer motor Keywords:3D print motor(17HS4401、4401),3D print motoring,3D printer motor,3D printer motor Accessories,3D printing motor,Stepper motor,Electric motor,Gear motor,Nema17 stepper motor,3D printer motor driver,3D printer motor supplier,3D printer motor cable,3D printer motor damper,3D printer motor for china,DC gear electric motor.




1.About us:
ShenZhen T-Trees Technology Co.,Ltd is a one-stop service provider for 3D print motor production, R&D, sales, accessories and 3D print-related derivatives from China.

All of our 3D printer products provide global (custom, design, proofing)
2.Contact:
E-mail:sales09#t-trees.com,Please use # after replacing it with @.
3.PAYMENTS:
We accept the following payment methods:
Escrow,T / T in advance, Paypal, Western Union.
If you have any other terms, pls contact us.
4.Long Time Warranty:
We offer 90-365days warranty on all items. Parts can be returned for replacement or refund during the warranty.
Items will be tested before shipment.They will be in good condition.If there are some problems with the items, feel free to contact us.
Please kindly contact us before returning any products. All returns must be made within 90 days from this shipment date. Return must be in new condition(the SAME CONDITION as it was sent to you).
5.Fast SHIPPING:
Parts would be shipped out within 1-7 working days.
If you don't have an account with any courier, we can help you to prepare the transport on our side and prepay the shipping cost here. We can ship our parts by DHL, UPS, FedEx, TNT and etc. to most places of the world. If you prefer any other shipping ways, please tell us and we'll check if it is available. We will ensure the lowest shipment cost.
6.CUSTOMS DUTY & HANDING FEE:
Please kindly note that our price is EXW price, not including shipping fee or handling fee.
When parts arrived at your local custom, if the parts were charged customs duty, we do not responsible for any custom duty or import tax.
7.CONTACT US:
Our office hours are 9:00am-12:00am ; 1:00pm-6:00pm China HK working time.Monday-Friday, except holiday.
All E-mails would be answered within 24hours, Trademanager would be answered within 5minutes.
Please don't be discouraged if your email is not answered during non-business hours.
We are closed weekends, so if you email us on Friday, we may not get back to you until next Monday.
If you have any issues, please CONTACT us before leaving negative feedback, we reply email in 24 hours.
8.Domestic Cooperation:
We can be your native partner in China with our one-stop supply capacity. If you're in China, you're welcome to give us an investigation.
Thank you for visit.Should you have any queries, feel free to call or e-mail us.
