LD+FAC Laser Technology
0.08mm compressed laser provides faster& deeper cuts, thinner and clearer trails.

300*300mm Operation Space
Large engraving size with open structure, suitable for projects of different sizes.

Fixed Laser Focus
Save your nerves on adjusting focus, easy to use and suitable for beginners.

Modular Assembly
Parts pre-assembled into few modules,much easier to set up the machine.

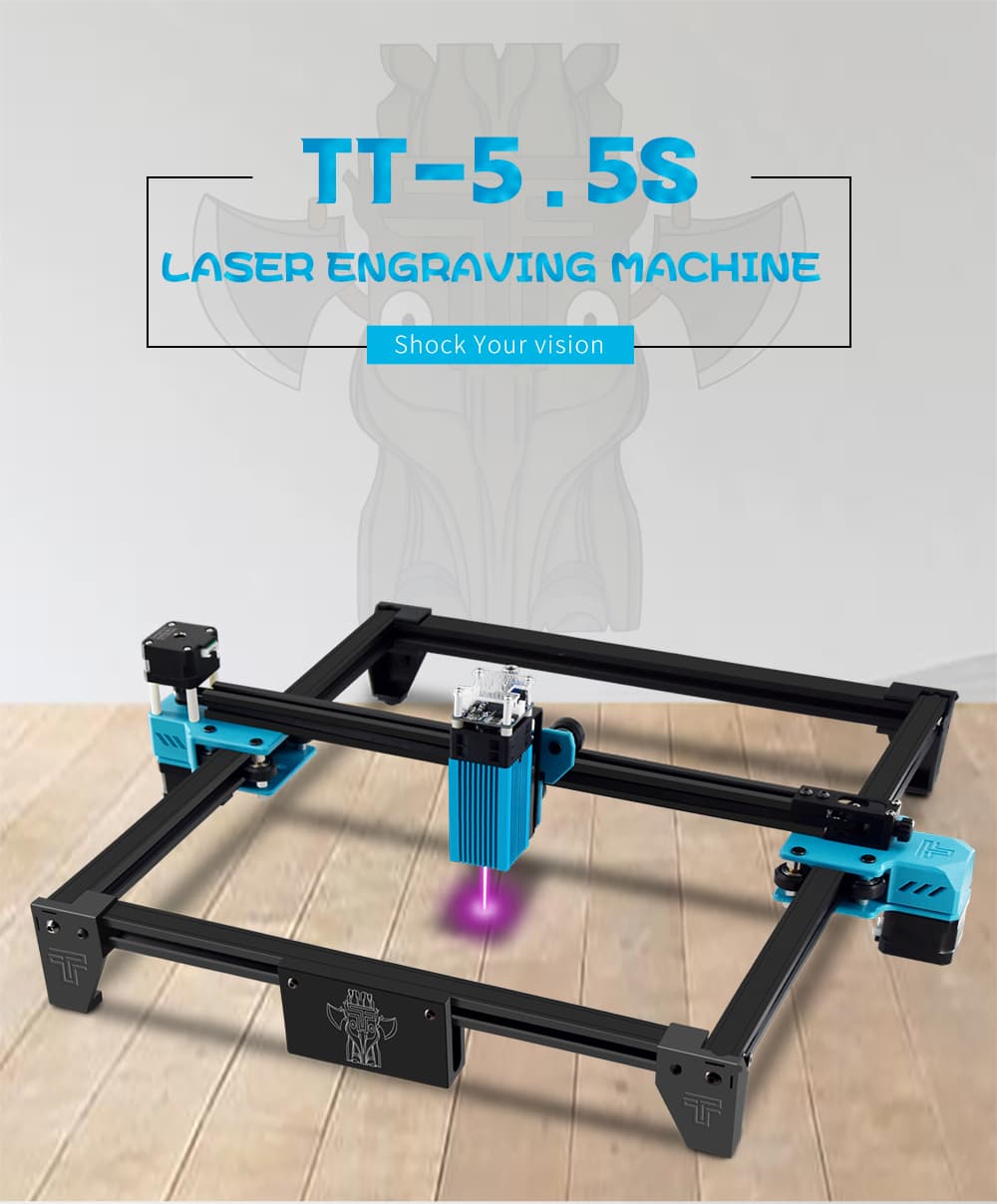

TT-5.5S is a powerful desktop laser engraving machine using LD+FAC+C-lens technology with 0.08mm compressed laser spot for stronger engraving and cutting capabilities. Its 300*300mm cutting space allows users to process various materials of different sizes and realize their full potential of creation.

Compressed Laser Spot
Advanced LD + FAC compressed laser technology to obtain a more powerful engraving and cutting ability with 0.08mm laser spot, more concentrated and higher precision to reduces the engraving time.

300*300mm Engraving Range
Large carving area, no limit of carving height, so you can carve as you like.

Fixed Focus Laser
No need to adjust the focal length before engraving. And the new laser offers both the possibility of precision engraving and high-energy cutting functions.

Z-axis Lifting Table
Since laser head is a fixed-focus, the Z-axis lifting table enables lower or raises the height of the laser head (0-40mm) to achieve the best engraving/cutting effect for different materials and heights.

X-axis Belt Tensioner
The belt tensioner makes it easier and more convenient to adjust the tightness of the X-axis to avoid the engraving staggered layer caused by the loose belt and achieve higher accutacy.

Wide Compatibility
Compatible with software such as LaserGRBL, LightBurn or BenBox for Windows, Mac, Linux system. Supports popular vector and image file formats like NC, DXF, BMP, JPG, PNG, etc.

Suitable Materials
Suitable for various materials such as leather, wood, MDF, acrylic, cardboard, bamboo, anodized aluminum, stainless steel, plastic, paper, rubber, sponge paper, etc.

Engraving Mode
Support multiple engraving modes including Photo, text, scanning, outline, pixel laser engraving.

Anti-slip Bracket
Anti-slip foot pad design, easy to install and makes the machine more stable.

Motor Integrated Drive Module
Modular design, more stable performance, and the three stepper motor drivers can provide faster-moving speed, completing high-efficiency engraving.

Auxiliary Positioning Light
The red auxiliary light helps users set the right positioning easily without extra settings.

Silent Motherboard
The silent motherboard ensure smooth movement under 50db, no noise during engraving.

High Precision Stepper Motor
1.8°angle stepper motor, more stable when working.

Open-source Design
With extra socket for more DIY modules to add advanced functions and customization for your device.
Comparison Sheet
Model No. | TTS-55 | TT-5.5S | TT-5.5 |
---|---|---|---|
Laser Type | LD+FAC+C | LD+FAC+C | Standard |
Material | Aluminum + Plastic | Aluminum + Plastic | Aluminum + Acrylic |
Control board | LTS ESP32 (32bit) | MKS LKS (8 bit) | MKS LKS (8 bit) |
Laser wavelength | 450±5nm | 450±5nm | 450±5nm |
Engraving Size | 300*300mm | 300*300mm | 380*380mm |
Accuracy | 0.1 mm | 0.1 mm | 0.1 mm |
Carving method | USB / APP / WiFi | USB | USB |
Continuous working time | 24Hrs | 6Hrs | 2Hrs |
Machine Size | L570 * W510 * H170MM | L570 * W485 * H170MM | L480 * W440 * H180MM |
