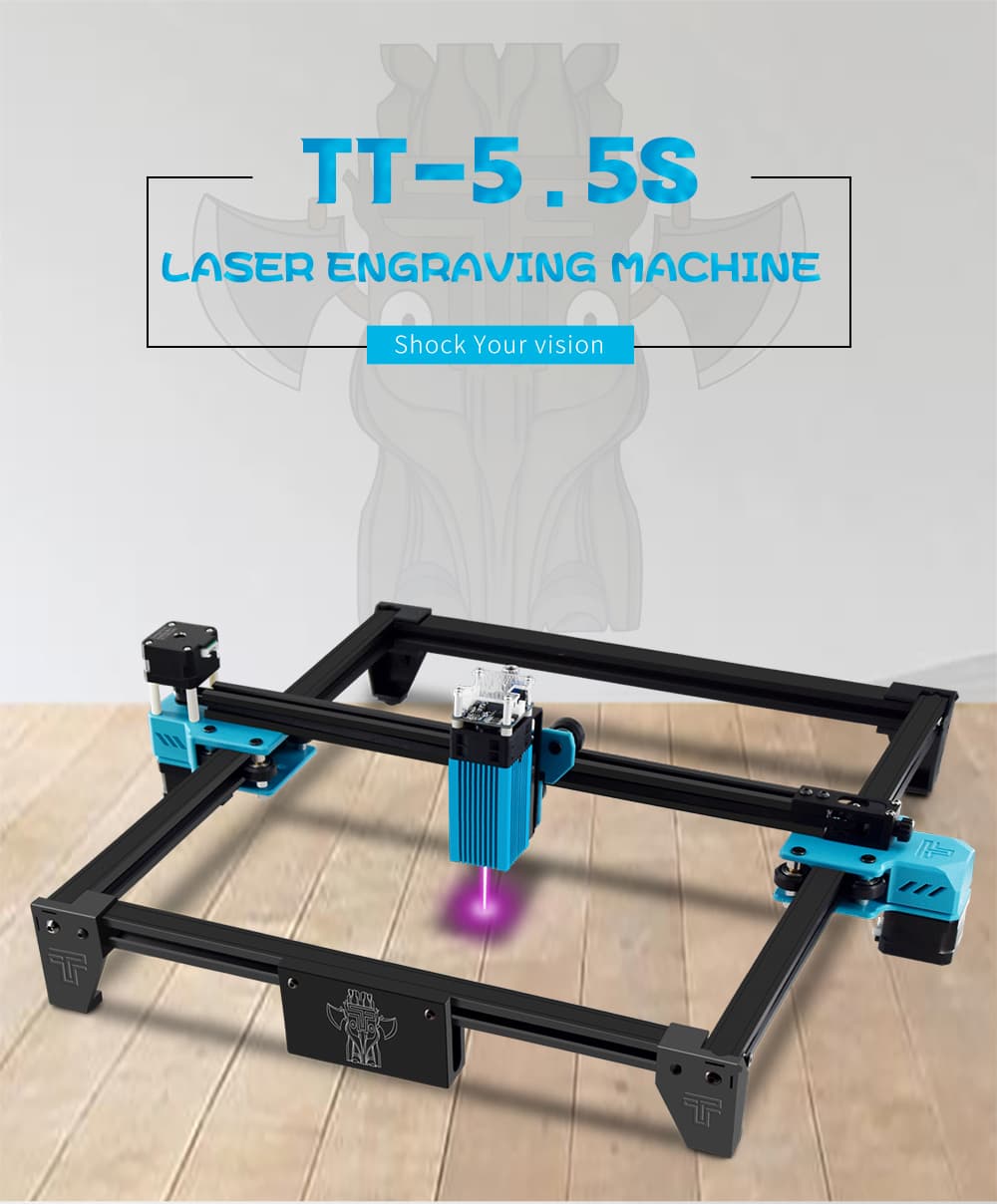

TwoTrees Laser Engraver TT-5.5S

Laser Engraver

3000MM/Min Engraving Speed, 0.08mm accuracy,

✅ Support LaserGRBL or LightBurn, work in Windows XP, 7, 8, 10, Mac OS, and Linux.

It can engrave stainless steel and cut up to 5mm plywood & 3mm acrylic board;

11.81" x 11.81"mm Working Area;

Limited-Time Offers, End in:

$20-off code: FB2DHYXA0VKX

$200-off for orders over $1500 code: 6WZV4DGG2KPF

$506 $189
Plugs Type :
EU 230V
US 110V
UK 230V
Bundle :
Hurry up! only 50 left
customers are viewing this product

Frequently Bought Together

Please choose options for all selected products:

Total: $0

Desktop Laser Engraver Twotrees TT-5.5 S Laser Engraving Machine with LKS Motherboard 40w

Customer Reviews

Based on 12 reviews
92%
(11)
0%
(0)
8%
(1)
0%
(0)
0%
(0)
k
kreto
not to good

hi
it´s a okay machine for hobbyist but the moving gantry i heavy (3 stepper and height adj.) so slower engraving to not risk losing steps.
manual says you get 12v 4a power supply mine says 12v 3a (max4a) that´s a new one (steppers are about 1.4A most 5w LD is around 3A so total 4.4a ish)
the X gantry is plastic and not rigid enough (V wheels have to clamp harder and gantry plate can maybe get warped with time)
and excited to see how long laser lasts
customer support is fast but not very usefully

J
Javier Lieblein
Excelente

Producto excepcional, muy buena calidad y muy buen servicio técnico

S
Simone Colombatto
Top

Assolutamente eccezzionale

G
Georges Lapointe
TT-5.5S

I only assembeld It si far and with the video it's fairly easy but se have to go slowly. I think that I'm going to gave fun.
Received earlier than scheduled.

A
Angelo Skagos

【Direct Shipping】TwoTrees Compressed Laser Engraver TT-5.5S

On the checkout page, the following situations will appear:
1. Standard International: This product is not in stock in the local warehouse and will be shipped from China.
2. Local Delivery: The product is in stock in the local warehouse and will be shipped directly from the local warehouse.
3. Economy International: Accessories and other products will be shipped from China.

Shipping from local warehouses Shipping to Shipping time
United States of America United States 3-7 business days

Germany

All countries belonging to the European Union 3-7 business days
French
Italy
Spain
Poland
Czech
Russian Federation Russian 3-7 business days
Ukraine Ukraine 3-7 business days
Turkey Turkey 3-7 business days
Brazil Brazil 3-7 business days
China Most countries in the world 7-15 business days
Most spare parts,filaments and accessories will be shipped from China 25-30 business days
Processing time:Within 3 business days





Orders for 3D printers and laser engravers from the following listed countries would be shipped from overseas warehouses without shipping costs and taxes (fees might be collected for remote areas).

  • All EU countries: Spain, France, Germany, Czech Republic, Poland, Italy, etc.
  • United States of America
  • Brazil
  • Turkey
  • Russia
  • Ukraine

Please note: in case your ordered machines are out of stock in overseas warehouses, we would ship goods directly from China. You might need to pay taxes and assist the shipping company with customs clearance.  We would contact you via email in such cases before shipping.

Orders for accessories from all counties are shipped from China and customers might need to bear the shipping costs and tax fees.

Materials test

Device & Material TT-5.5S
SpecificationTesting Type

Rated Power: 5.5W

Tested Power: 4.98W

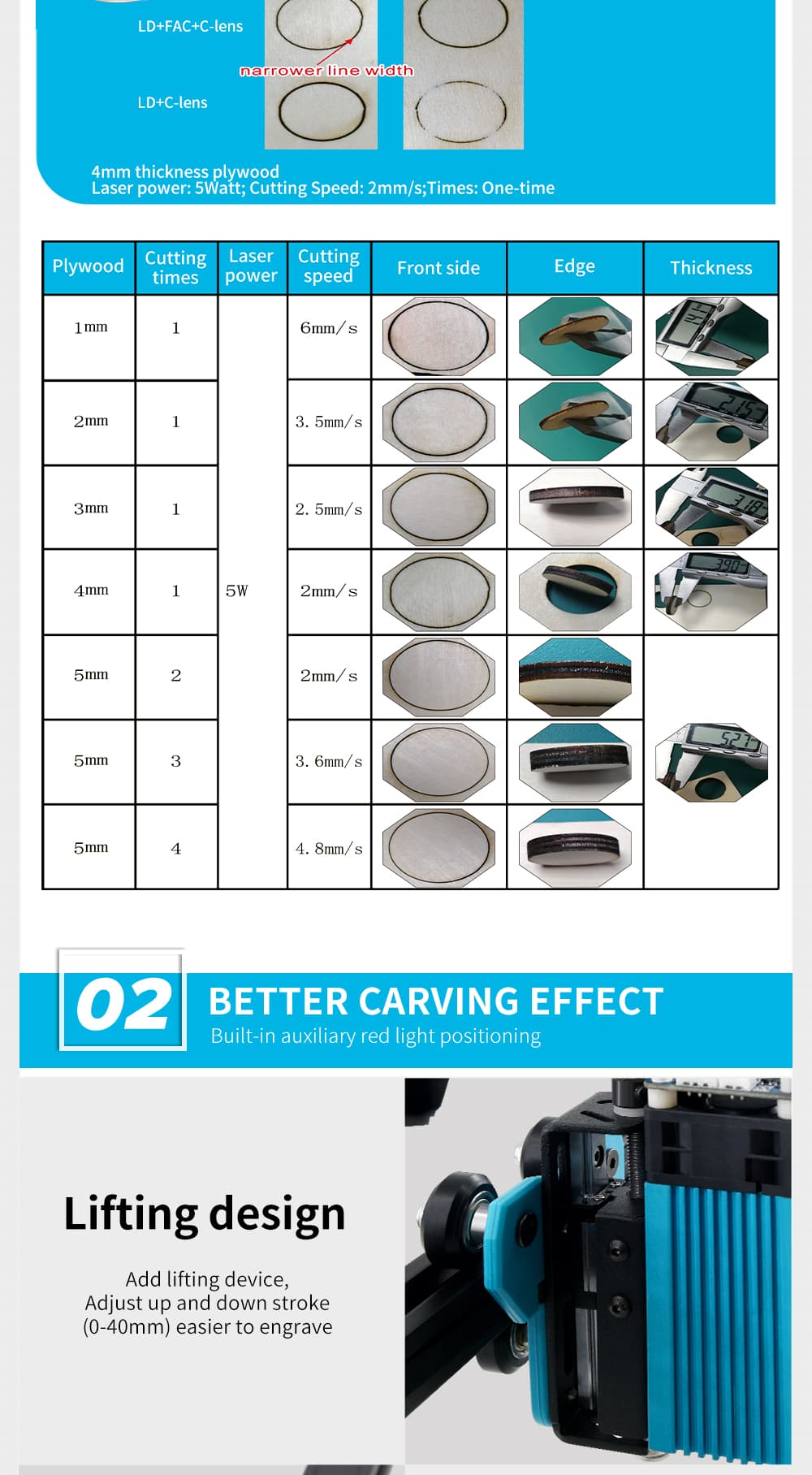

Plywood (1MM)Engraving2000mm/min 30%
Cutting400~500mm/min 100%
Plywood (2MM)Engraving2000mm/min 30%
Cutting300~400mm/min 100%
Plywood (3MM)Engraving2000mm/min 30%
Cutting200~300mm/min 100%
Plywood (4MM)Engraving2000mm/min 30%
Cutting100~150mm/min 100%
Plywood (5MM)Engraving2000mm/min 30%
Cutting100mm/min 100% *2
Plywood (8MM)Engraving2000mm/min 30%
CuttingX
Acrylic Sheet (1MM)Engraving6000mm/min 20%
Cutting100~200mm/min 100%
Acrylic Sheet (2MM)Engraving6000mm/min 20%
Cutting100~150mm/min 100%
Acrylic Sheet (3MM)Engraving6000mm/min 20%
Cutting150mm/min 100% *2
Pine Board 7.0mmEngraving2000mm/min 40%
Cutting100mm/min 100% *2
Pine Board 9.0mmEngraving2000mm/min 40%
CuttingX
Paper 0.1mm (Darker Color)Engraving6000mm/min 45%
Cutting4000mm/min 100%
Paper 0.3mm (Darker Color)Engraving4000mm/min 80%
Cutting1500-2000mm/min 100%
250g/sq.m Kraft PaperEngraving4000mm/min 80%
Cutting1500-2000mm/min 100%
3mm CardboardEngraving6000mm/min 80%
Cutting300-400mm/min 100%
Leather 0.7MMEngraving6000mm/min 80%
Cutting700mm/min 100%
Non-woven Fabric (0.5mm, darker color)Engraving6000mm/min 60%
Cutting2000-3000mm/min 100%
Dust-free Cloth (white)EngravingX
Cutting50-100mm/min 100%
GauzeEngravingX
Cutting300mm/min 100%
Plastic Plates (In darker color)Engraving6000mm/min 70%
CuttingX
Acrylic 5mmEngraving6000mm/min 20%
CuttingX
Tinned WireEngravingX
CuttingX
CobblestoneEngraving3000mm/min 100%
CuttingX
CeramicsEngravingX
CuttingX
Coated MetalEngraving5000mm/min 50%
CuttingX
Electroplated MetalEngraving300mm/min 100%
CuttingX
Anodized AluminumEngraving4000mm/min 60%
CuttingX
Stainless SteelEngraving1500mm/min 100%
CuttingX
MDF 3mmEngraving5000mm/min 40%
CuttingX
Paper Angle Bead 5mmEngraving4000mm/min 80%
CuttingX

Specifications

Model numberTT-5.5s
TypeLaser Engraving
MaterialAluminum + Plastic
Control boardMKS LKS
Laser wavelength450nm

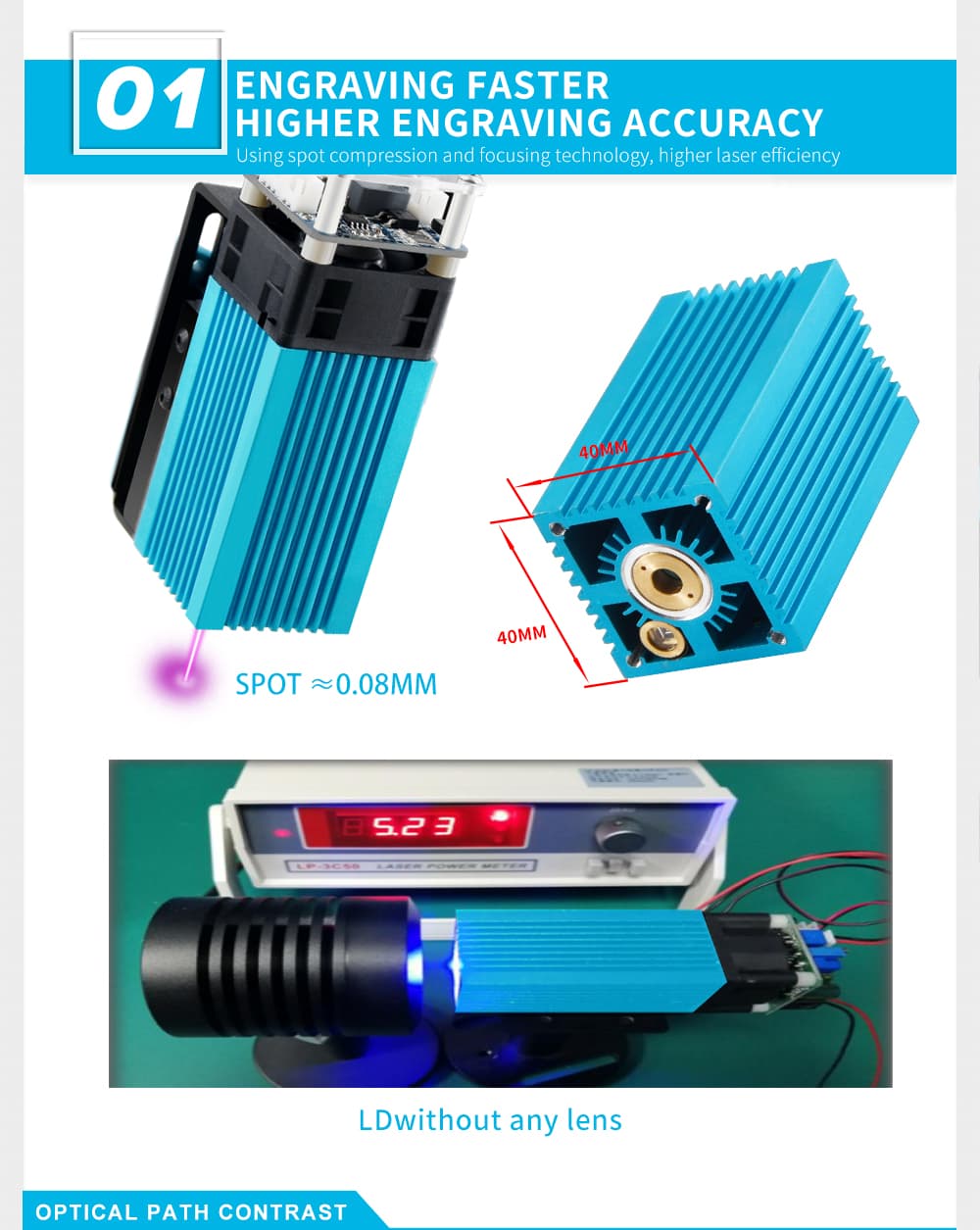

Laser power5500mW (LD+FAC)
Engraving Size300*300mm
Laser inputAC100-240V
Power supply12V 4A DC
PlugUSA / EU / UK / AU Plug (optional)
Accuracy0.08mm
Engraving speed8000mm/min
Carving methodComputer Online Operation
InterfaceUSB
File format.nc / .dxf / .bmp / .jpg / .png etc.
Engraving modeimage / text / scanning / outlining / pixel engraving, etc.
Support softwareLaser GRBL/LIGHTBURN
Support SystemWindows/Mac
Continuous working time≤6Hrs
Machine SizeL570*W485*H170MM

TF Card Files: Download (User manual, installation video,softwares and other required files are all included in the profile.)



Assembly video

Fast Shipping

Stocked machines are shipped directly from local market and would get to your address within 7 working days.

12 Months Warranty

We provide one-year full warranty for customers. We accept return and replacement within 14 natural days after receiving products.

Lifetime Technical Support

We provide lifetime technical support to our global customers. Feel free to get in touch via chat widget or email.

24/7 Customer Service

We provide 24/7 service for customers. In case, instand help is not available, our team would message you within 48Hrs.
